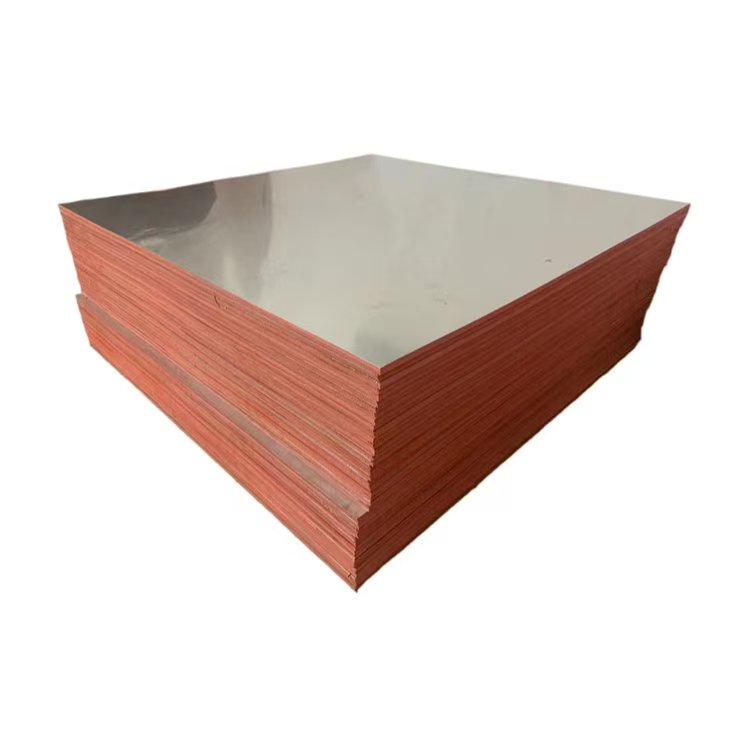

METAL COMPOSITE FIREPROOF EXPANSION BOARD

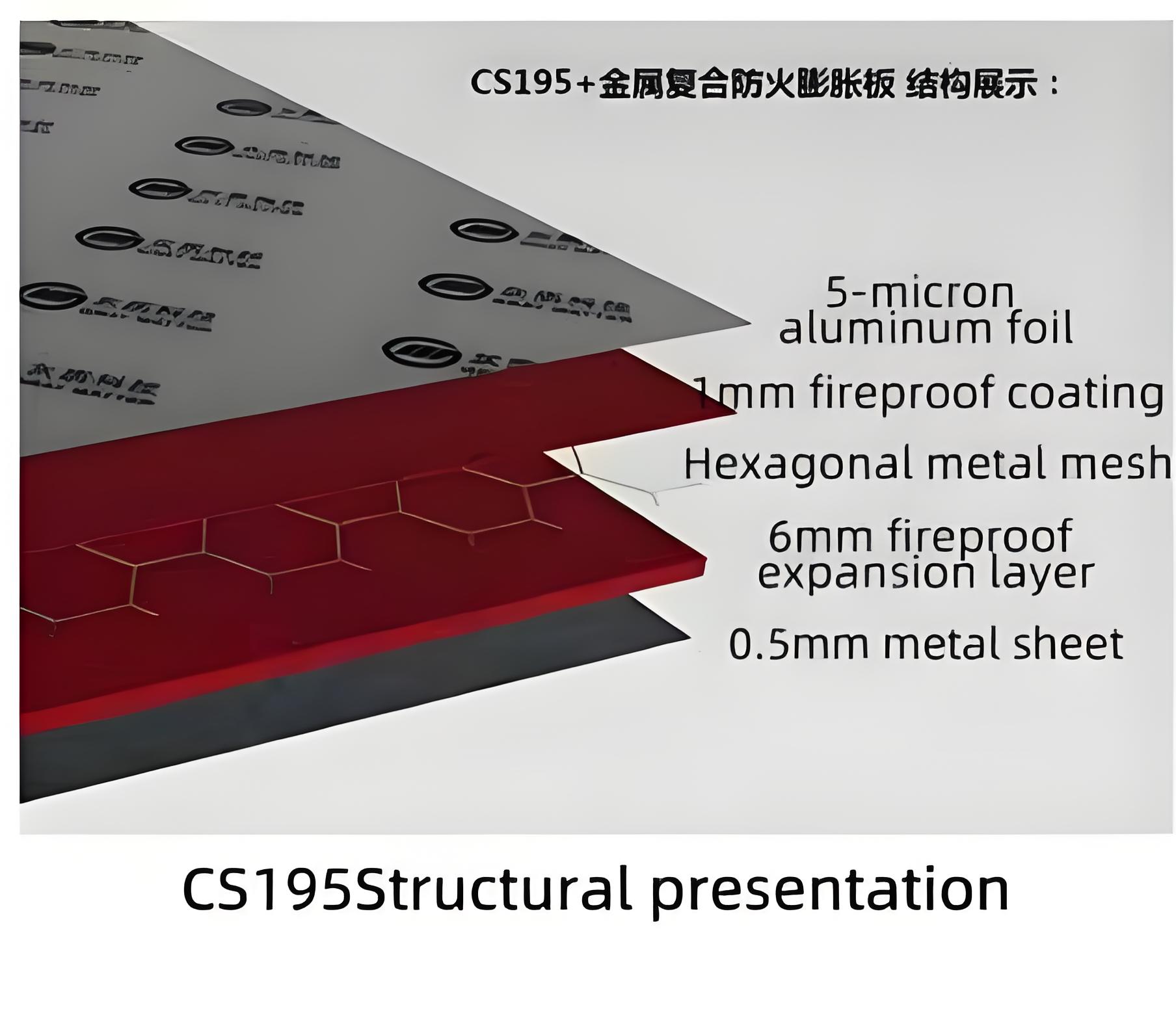

Metal composite fireproof expansion panels are a type of intumescent fire-stopping material composed of a four-layer structure, including No.28 steel plate, expandable material, iron wire mesh, and aluminum foil. They can be easily handled and installed using common tools.
With a thickness of 8mm, they can quickly expand to 8 times their original thickness when exposed to fire, providing a fire resistance rating of up to 3 hours.
The metal composite fireproof expansion panel (RYZHI-CS195) is specifically designed for fire protection of cable trays, pipelines, and critical process equipment. It effectively prevents the spread of flames, radiant heat, and smoke. When exposed to fire, its fireproof heat material rapidly expands to form a dense carbonized layer, cutting off heat transfer and preventing the penetration of smoke. It maintains stable fireproof performance over long-term use and is suitable for various high-risk environments.
PRODUCT PARAMETER
LENGTH (mm)
914
WIDTH (mm)
914
HEIGHT (mm)
7.8
EXPANSION RATIO
8 times the original thickness
EXPANSIVE PRESSURE
0.8-1.2 N/mm² (Under fire conditions)
DENSITY (m³)
7.8
FLEXURAL STRENGTH
≥12 MPa
TEMPERATURE RESISTANCE
Maximum temperature resistance 1200℃
COMPRESSIVE STRENGTH
≥25 MPa
EXPANSION TEMPERATURE
The initial swelling temperature is 100℃
COMBUSTION PERFORMANCE
A1 Level
(Non-combustible)
FIRE RESISTANCE DURATION
3 Hours
CORROSION RESISTANCE
The outer steel plate and aluminum foil have good anti-oxidation and corrosionresistance properties
EXPANSION TIME
The time to reach maximum
expansion is approximately
20 minutes
APPLICABLE TEMPERATURE RANGE
-20°C~70°℃
(For indoor use only)
PRODUCT FEATURES
8 times expansion
With a high expansion rate, a 7.8mm thick board can quickly expand to 8 times its original thickness when exposed to fire, forming an effective fire barrier
Fire-resistant for 3 hours
Refractory limit can reach up to 3 hours blocking open flames and heat transfer providing long-lasting fire protection
Easy to install
Easy to install, can be easily operated and installed using common tools,without the need for special equipment or complex procedures
High-efficiency fire prevention
Rapidly expands when exposed to fire,forming a dense fire-resistant layer that effectively blocks the spread of flames and heat
Widely used
Suitable for building partition walls
and suspended ceilings, cable wall
penetration protection, and various other situations requiring fire protection
Strength and stability
The wire mesh and steel plates in the multilayer structure provide additional mechanical strength and structural stability, ensuring durable protection at high temperatures
Durable
The layers of aluminum foil and steel plate provide good corrosion
resistance and durability, making them suitable for long-term use
1200°C
The maximum temperature resistance
can reach 1200°c, providing better
fire protection

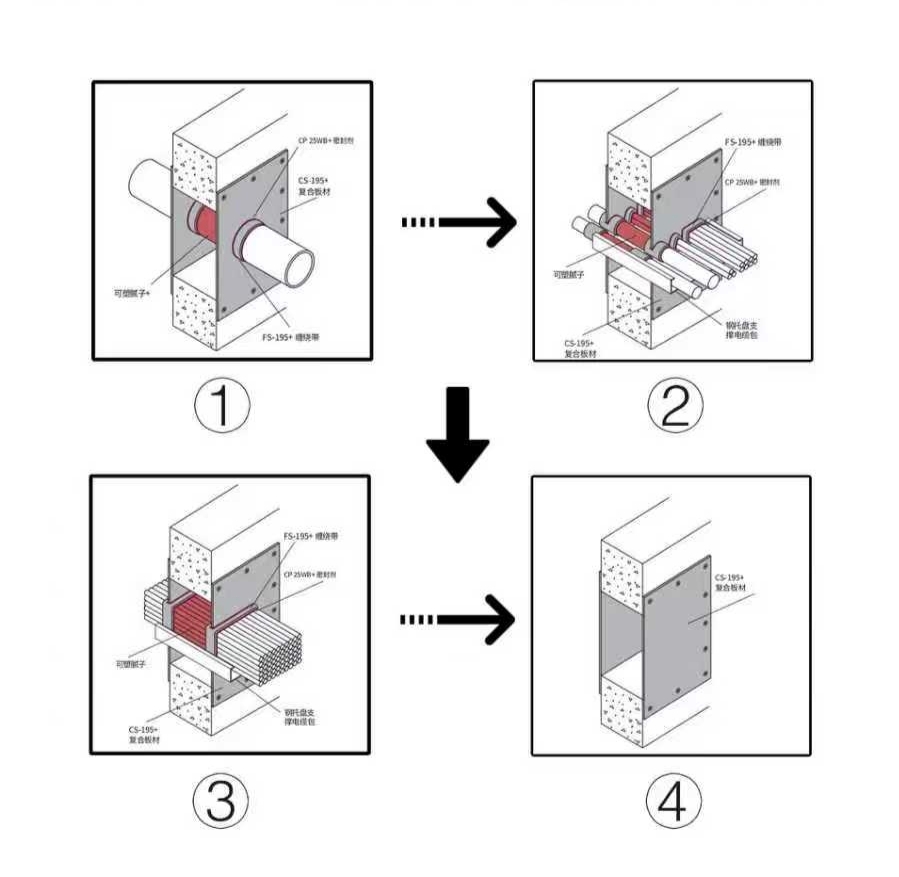

INSTALLATION TUTORIAL

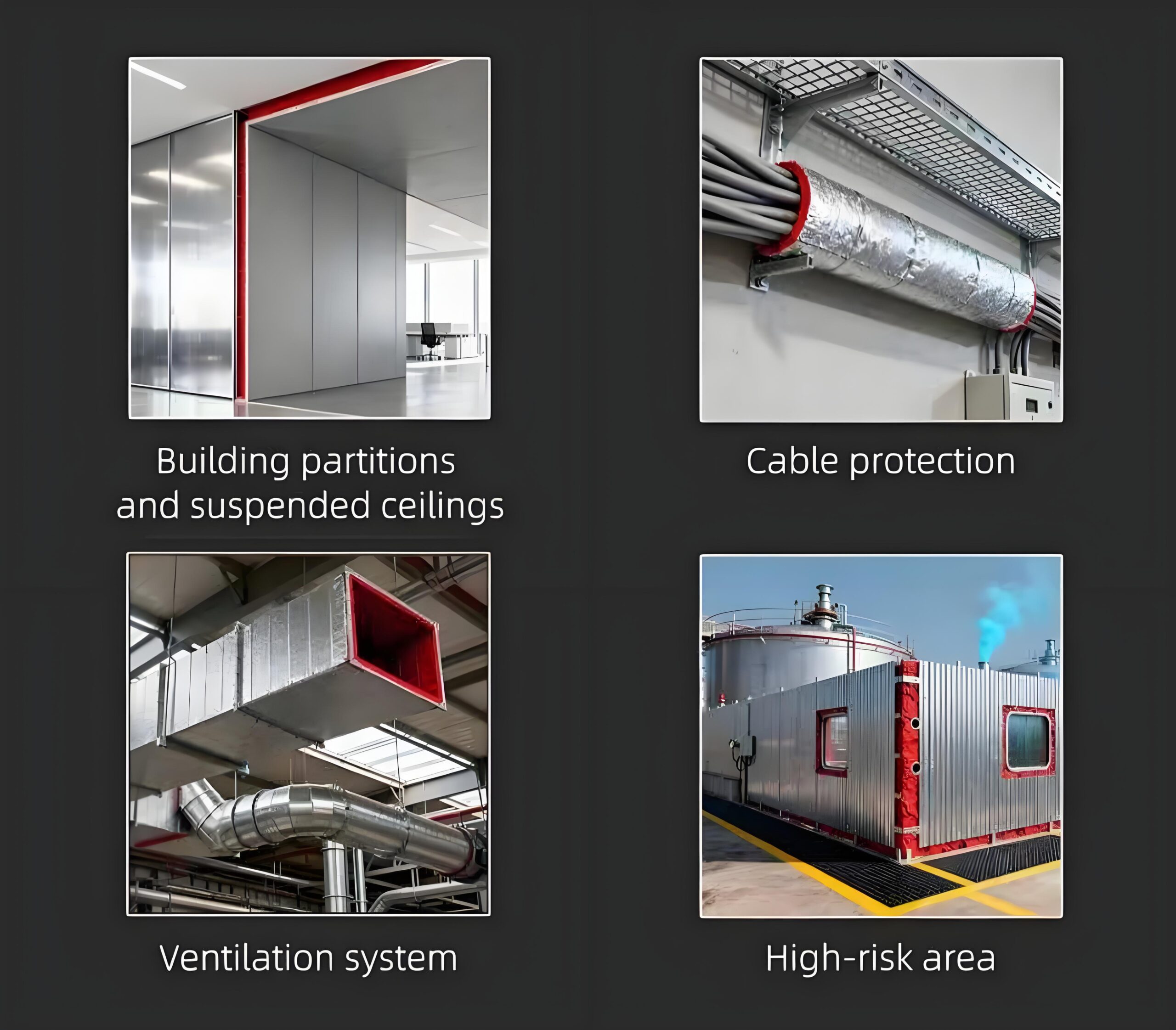

APPLICATION SCENARIO
Metal composite fireproof expansion board (BYZH1-CS195)is
widely used in construction projects, industrialfacilities, and
transportation infrastructure where high-temperature protection
and fire isolation are required.Specific applications include:
USAGE SUGGESTIONS
1.installation:
Common tools can be used for cutting, and it is necessary to ensure
that the panels fit tightly with the protective area to prevent flame
and smoke infiltration. lt is recommended to wear protective gloves,
2.Inspection:
Check the installation area annually to ensure there is no
damage or looseness, and promptly replace any damaged panels;
3.Packaging:
It is recommended to individually wrap each sheet of board with a
PE plastic film before placing it into a carton to prevent
damage during transportation;
4. Storage:
Store in a ventilated and dryenvironment, avoid water and high
temperatures, and do not stack heavy objects on
top to prevent damage,
5.Transportation:
Avoid severe impacts and excessive stacking.lt is recommended
to lay flat and keep the container intact, and to avoid contact
with corrosive chemicals.
