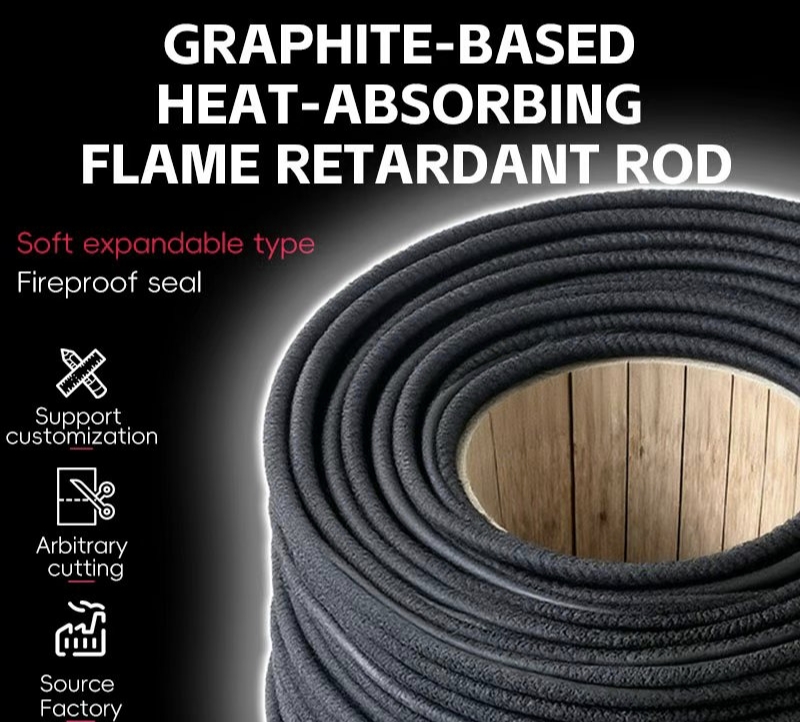

GRAPHITE-BASED HEAT-ABSORBING
FLAME RETARDANT ROD
Soft expandable type Fireproof seal

BYZH-C
BYZHI INSULATED FIRE-
RESISTANT EXPANSION STRIP

BYZHI INSULATING FIREPROOF
EXPANSION BOARD
BYZHI 100,104 New fireproof and heat-insulating material

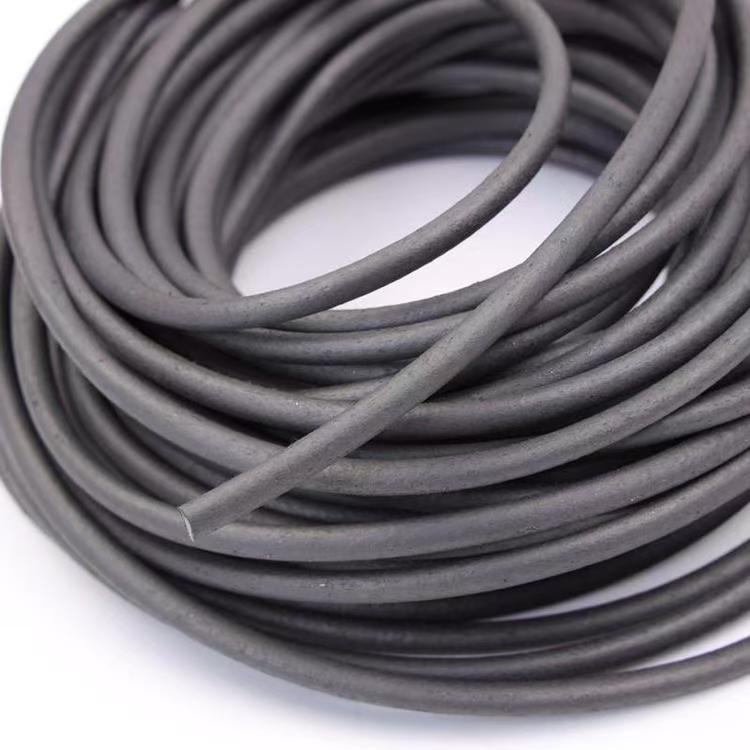

Graphite-based heat-absorbing flame retardant rod

GRAYMATTER is a flexible, intumescent fireproof seal made from the expanding material in fire, graphite. When exposed to the flames, the thermoplastic matrix expands at least 30 times its original thickness. The microporous layer formed during the expansion process prevents flames, smoke, and hot gases from passing through the gaps in fire-resistant components.

PRODUCT FEATURES

*Has excellent flexibility
*Easy to cut
*Delivery of parts in rolls or cut to size
*Solid and hollow types

*The expansion ratio in case of fire is relatively high
*The surface can be attached with double-sided tape for easy installation
*Good weather resistance

PRODUCT DATA

SIZE RANGE (mm)
Endothermic flame retardant rod (cylindrical): Diameter5/6/8/10mm Endothermic flame retardant rod (cylindrical (hollow)): Diameter6/8/10mm

EXPANSION FACTOR
Both are 30 times

THICKNESS
Standard thickness: 2mm
Suitable for most fireproof joint sealing applications

INITIAL EXPANSION TEMPERATURE
180℃
Suitable for rapid response in fire scenarios

EXPANSION FACTOR
At 750℃ for 30 minutes, it can expand to 9-30 times its original thickness.

EXPANSIVE PRESSURE
The expansion pressure at 300℃ is 0.35-0.65 N/mm²

WEIGHT
3.10 kg/m

DENSITY
1.55 g/cm³

COMPRESSIVE STRENGTH
1.2 N/mm² (at room temperature)

ANTI-AGING PERFORMANCE
Has good weather resistance and aging resistance in high humidity and high temperature environments.

*For other specifications and shapes, please contact us.

APPLICATION SCENARIO

Fireproof expansion strips are suitable for perimeter sealing in fire protection systems (doors, shutters, valves, cabinets, partitions, cable passages, etc.) and enhance the fire resistance of building components.

USAGE SUGGESTIONS

Fireproof sealant suitable for construction and industrial applications such as door frames, wall gaps, and cable wall penetrations.
It is recommended to embed it directly into the gaps, where it will rapidly expand during the early stages of a fire to form a sealing barrier.
Suitable for scenarios requiring a fire resistance of 60 minutes or more, and complies with the req-uirements of major fire protection building codes.
Standard roll packaging (each roll is 20m long, width can be customized).
Use moisture-proof plastic bags or vacuum packaging to ensure the stability of the materials during transportation and storage.
Store in a dry, ventilated environment, avoiding direct sunlight and high temperatures.
Recommended storage temperature is between 0℃ and 30℃.
The shelf life is 2 years under standard storage conditions.
Avoid heavy objects pressing on it to prevent material damage; avoid contact with acidic or alkaline substances to prevent affecting its fire-resistant properties.

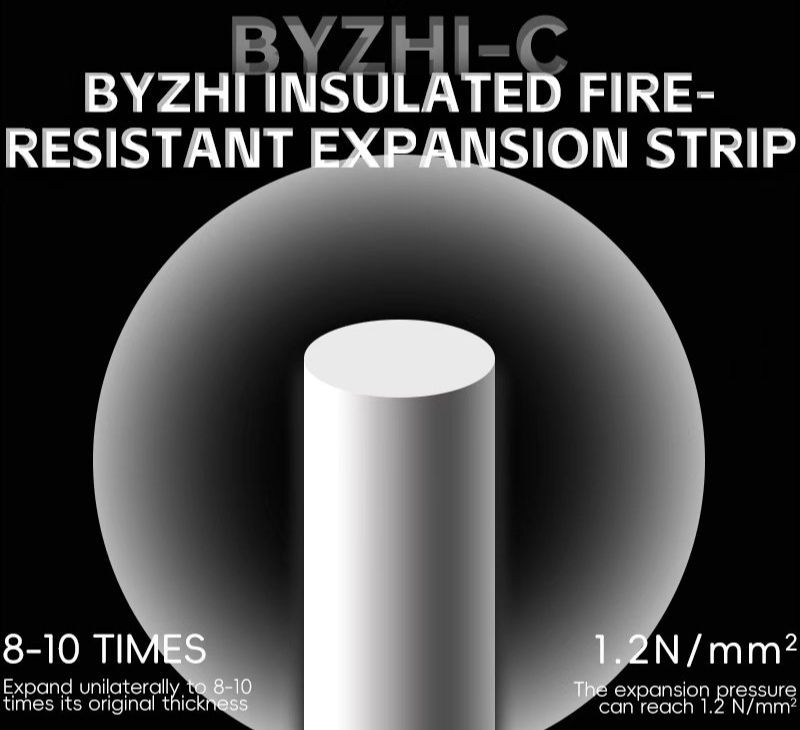

BYZHI INSULATED FIRE-RESISTANT EXPANSION STRIP

BYZHI C is a heat-insulating fireproof expansion strip, made by filling white material with a small amount of organic components. It is used for filling cavities in profiles such as PVC, aluminum alloy, steel, and polyurethane. When exposed to high temperatures, the vinyl film melts, and the white material expands to form a soft, non-combustible foam layer. This layer blocks a large amount of heat radiation and slows down the temperature rise of the profile, ensuring the fire resistance integrity and heat insulation performance of the profile fire protection system. Under high temperatures, the expansion of the white material can exceed 10 times its initial volume, and the expansion pressure can reach 1.2 N/mm², providing an effective barrier. As the fire temperature rises, the mechanical strength of the white material gradually increases, providing good support to the system.

PRODUCT PARAMETER

SPECIFICATIONS (mm)
Φ11mm
Φ13mm

PACKAGING
290m/box
180m/box

COMBUSTION PERFORMANCE
Class A (A1)

EXPANSION RATIO
8-10 times the original thickness

EXPANSIVE PRESSURE
Up to 1.2 N/mm²

THERMAL CONDUCTIVITY
0.055W/ (m·k)

COLOR*
The standard color is white. If you need other colors, please contact us.

LENGTH*
BYZHI C is a cylinder. If you need other lengths, please contact us.

USAGE SUGGESTIONS

1. Storage Requirements
Keep stored in a cool, dry environment (such as a dry warehouse) and avoid environmental factors like humidity that may affect product performance.
2. Installation and Usage Precautions
Please keep the surface vinyl film during installation. This film can enhance the product’s resistance to environmental impacts, extend the service life of the sealing strip, and will not affect the product’s performance. It does not need to be removed and can be used directly. BYZHI C may undergo slight deformation under load (including its own weight), which can automatically conform to the shape of the supporting structure; this is a normal characteristic.
3. Packaging Method
The product is packaged in cardboard or wooden boxes to ensure protection during transportation and storage.

APPLICATION SCENARIO

BYZHI Insulation Fire-Expansion Strip BYZHI C Suitable for fireproof filling of various profile cavities:
Broken bridge aluminum profiles.
Plastic steel profiles.
Polyurethane profiles.
Common aluminum alloy profiles.
Steel profiles.

*Reaction of white phosphorus when exposed to fire

PHYSICAL DISPLAY

A new fireproof and thermal insulation material developed based on the hybrid aerogel principle, made from a mixture of various inorganic materials.
At a temperature of 20℃-40℃, it is easy to cut and stamp.
Expands at 100℃, and the product volume can expand to 8-15 times its original volume.
The expansion pressure can reach up to 1.5 N/mm².
Release water vapor, producing an endothermic effect
After being exposed to fire, it forms a non-combustible foam layer with structural strength, which blocks the passage of flames and heat transfer.
BYZHI does not release harmful gases in a fire
Asbestos-free

PRODUCT SPECIFICATIONS

COLOR
White

THICKNESS
BYZHI 100 0.8-2.8mm
BYZHI 104 3.0-10.0mm

OPTIONAL FILL
BYZHI 100 Fiberglass
BYZHI 104 Fiberglass
Other additives 25%-40%

DENSITY
BYZHI 100 1620kg/m³
BYZHI 104 1700kg/m³
Expansion ratio >8 times the initial thickness
Expansion pressure≥0.9 N/mm²
Thermal conductivity (20℃) 0.8 W/m·K

*BYZHl is not a product with a fixed form; its hardness, color, expansion pressure,
and thermal conductivity can be adjusted according to customer needs.
lf you require a product with other specifications, you can contact us

BYZHI 100

BYZHI 104

FULL BOARD STANDARD SIZE

1100mmx2.0x2100mm

SHEETS PER PALLET
100

FULL BOARD STANDARD SIZE

1100mmx4.0x2100mm

SHEETS PER PALLET
50

*The BYZHl board can be cut or stamped according to your requirements
Tolerance: ±0.5mm
The BYZHl board can have double-sided tape attached to the surface for your convenience

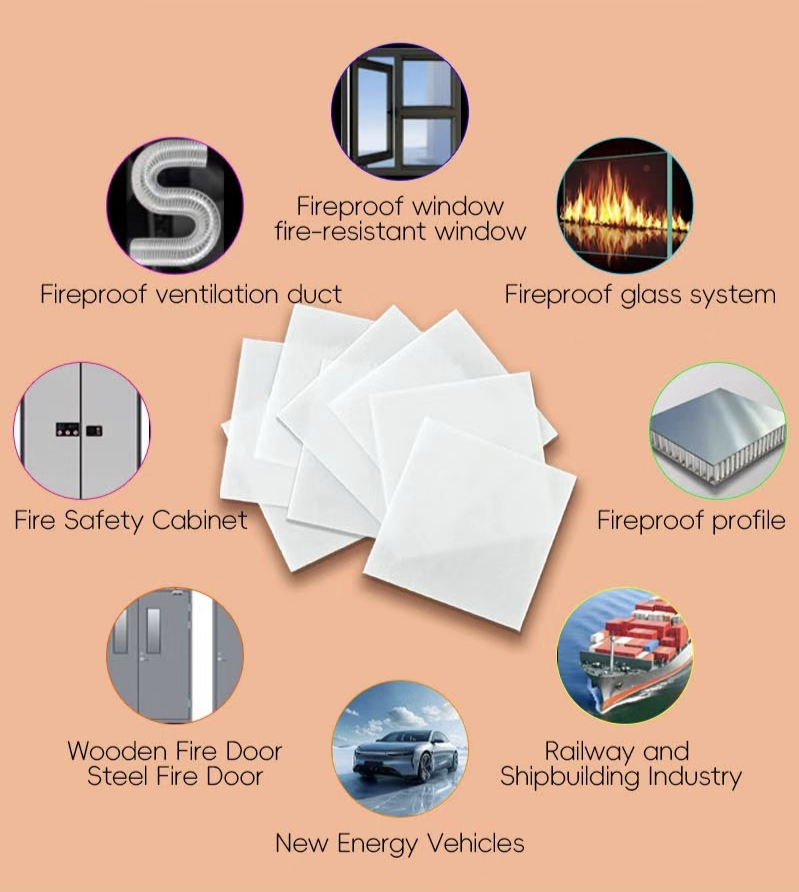

APPLICATION SCENARIO

Contact us

Mailbox:tengtianyou06@gmail.com
WhatsAPP: +86 136 4212 1423
Instagram: automaticdoor_jyh
Facebook: Automaticdoor Jyh
Youtube: automaticdoor_jyh

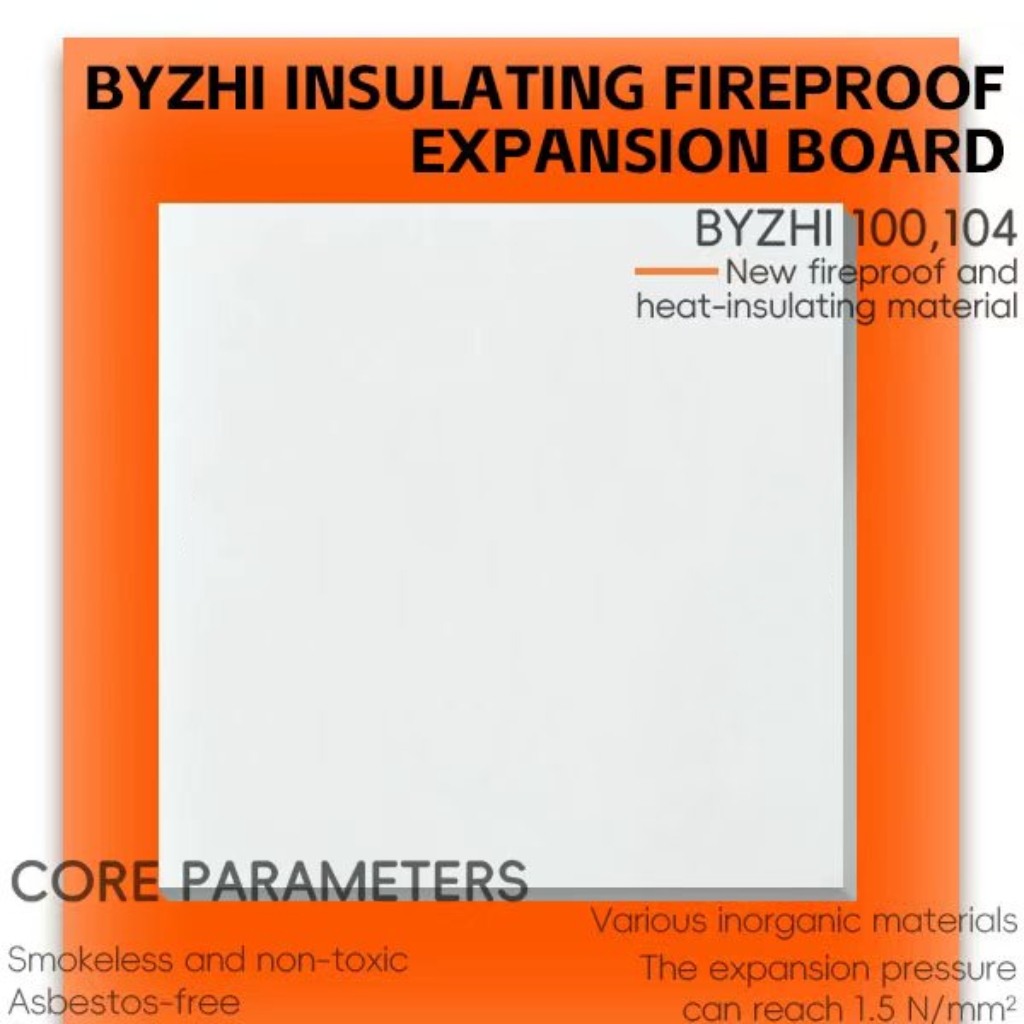

FIREPROOF EXPANSION BOARD

DID YOU REALLY CHOOSE

THE RIGHT ONE?

Smokeless and non-toxic
Asbestos-free
Various inorganic materials
The expansion pressure can reach 1.5 N/mm²
