CERAMIC FIBER FIREPROOF COTTON

FCB fireproof cushioning and insulating cotton is a high-temperature sealing tape material specifically designed for fire-resistant glass installation, featuring outstanding thermal insulation performance. Its soft and compressible characteristics can effectively protect the corners of fire-resistant glass, preventing breakage caused by mechanical compression.

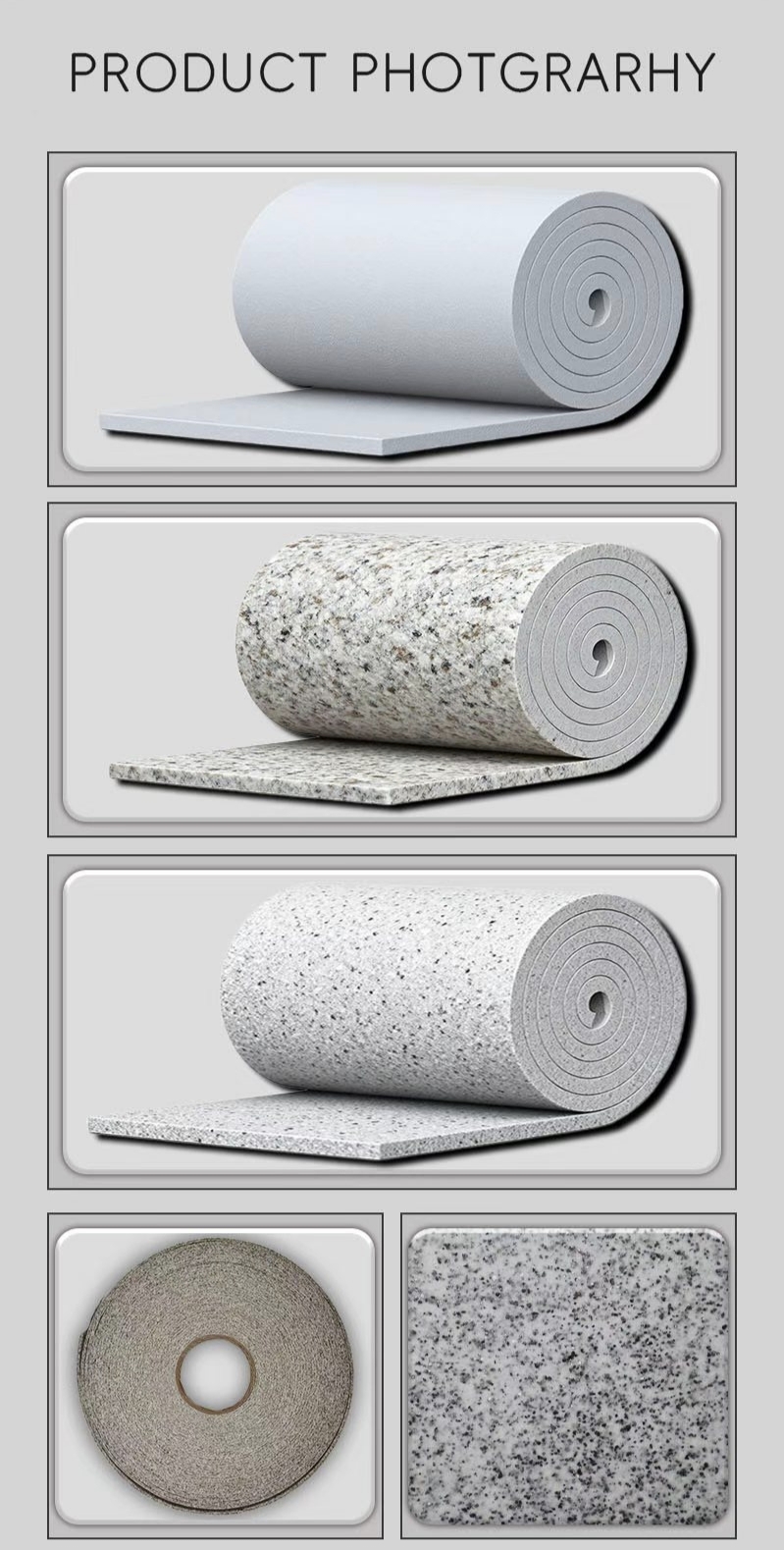

CERAMIC FIBER STYLE:
Made from pure ceramic fiber material, it has excellent fire resistance and thermal insulation capabilities, suitable for long-lasting protection in high-temperature environments.
CERAMIC FIBER GRAPHITE TYPE:
Adding graphite components to the ceramic fiber provides good expansion properties, forming an effective expansion layer under high fire temperatures, further enhancing the thermal insulation effect.
CERAMIC FIBER VERMICULITE TYPE:
Adding vermiculite to ceramic fibers provides natural expansion properties. When exposed to fire, it rapidly expands to form a porous structure, offering higher thermal insulation and fire resistance. It is sticky, making it easy to install quickly.

PRODUCT PARAMETER

THICKNESS (mm)
WHITE: 3/4/5
BLACK: 3/4
EXPANDED VERMICULITE: 3/4
EXPANDABLE GRAPHITE: 3/4

WIDTH (mm)
WHITE: 10/15/20/30
BLACK: 10/15/20
EXPANDED VERMICULITE: 10/15/20
EXPANDABLE GRAPHITE: 10/15/20

LENGTH (m)
WHITE: 20m/roll
BLACK: 20m/roll
EXPANDED VERMICULITE: 20m/roll
EXPANDABLE GRAPHITE: 20m/roll

DENSITY (m³)
WHITE: 192kg/m³
BLACK: 202kg/m³
EXPANDED VERMICULITE: 320kg/m³
EXPANDABLE GRAPHITE: 310kg/m³

INFLATION RATE
Expands to 3-5 times its original thickness at 800℃

*Contact us for custom specifications or shapes

TEMPERATURE RANGE
WHITE: Temperature resistant up to 1260℃, can reach 1350℃ for a short period.
BLACK: Temperature resistant up to 1260℃, can reach 1350℃ for a short period.
EXPANDED VERMICULITE: Temperature resistant up to 1260℃, can reach 1350℃ for a short period, and expansion can enhance the density and stability of the insulation layer.
EXPANDABLE GRAPHITE: Can withstand temperatures up to 1260℃, reaching 1350℃ for short periods, and expands at high temperatures to enhance insulation.

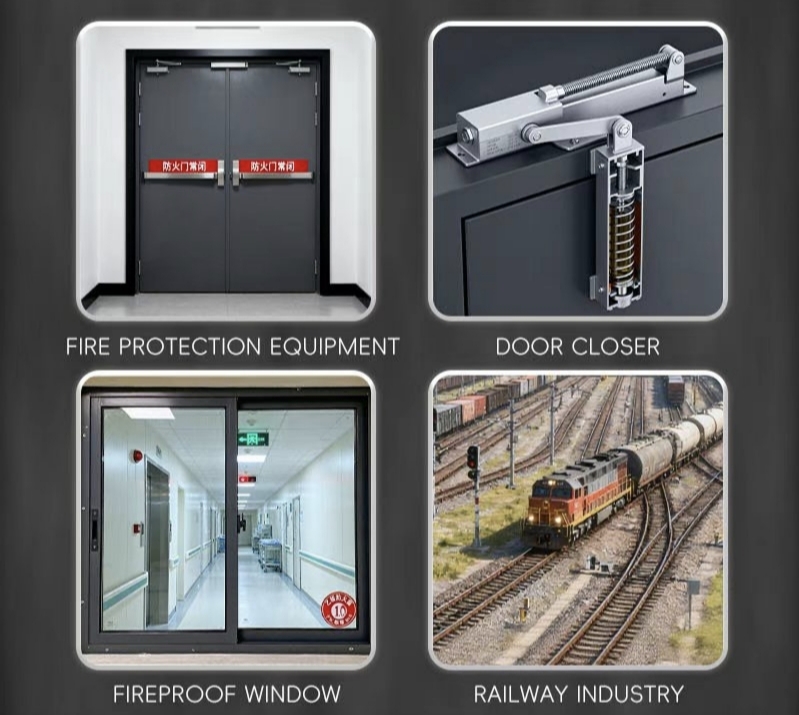

APPLICATION SCENARIO

Fireproof buffer insulation cotton FCB can be applied to any fire-resistant components and locations that require buffer insulation:
Sealing and protection of fire prevention equipment (doors, valves, etc.);
Protect lock boxes, door closers, hinges, etc.;
Insulation and sealing of household heating equipment;
Fireproof windows, fire-resistant windows;
Used for sealing around fire-resistant glass;
Thermal and sound insulation screens (elevator doors, transportation, marine use, etc.);
Railway and shipbuilding industries.

USAGE SUGGESTIONS

1. Construction Operation specifications
Preprocessing:
Ensure that the fire-resistant glass and the edges of the frame are free of contaminants and water stains to avoid affecting the self-adhesive performance of the sealing cotton.
Cutting:
Use scissors or a sharp knife to trim to the desired length. Protect the surface layer of the cotton strip during cutting to prevent damage to its adhesive strength.
Installation:
Press the cotton strip tightly against the edges of the glass frame to eliminate gaps, ensuring sealing and expansion performance in high-temperature environments.
2. Daily maintenance requirements
During routine inspections, if the surface of the cotton strip is damaged or if its self-adhesive strength has weakened, it should be replaced promptly to ensure optimal fireproof performance.
3. Packaging protection standards
Each roll of fireproof cotton is packaged with heat-shrink plastic to provide dust and moisture protection; the exterior is combined with a rigid cardboard or wooden box to prevent compression and deformation, ensuring the products of the cotton strips remain intact.
4. Storage Conditions and Shelf Life
Environmental requirements:
Store in a dry, ventilated place, avoiding direct sunlight and prolonged humidity to prevent adhesion and material aging; it is recommended to maintain a storage temperature of 5℃-35℃.
Shelf life:
Under good storage conditions, fireproof cotton can be stored for 2 years; after the expiration period, it is recommended to check its performance first and only use it if it meets the standards.
