PRODUCT PARAMETER

MODEL
VENTIL V25
VENTIL V40
VENTIL V50
VENTIL V60

WIDTH(mm)
100-600
100-600
100-600
100-600

HEIGHT(mm)
100-600
100-600
100-600
100-600

THICKNESS(mm)
25
40
50
60

VENTILATION EFFICIENCY
0.6
0.6
0.6
0.6

FIRE RESISTANCE LIMIT
15-30min
60min
90min
120min

MODEL
VENTIL VC40
VENTIL VC60

DIAMETER (mm)
100-400
100-400

THICKNESS (mm)
40
60

VENTILATION EFFICIENCY
0.6
0.6

FIRE RESISTANCE LIMIT
60min
120min

TECHNICAL DATA

AIR PERMEABILITY
The ventilation hole design achieves a 60% air circulation rate

TEMPERATURE RESISTANCE
Temperature resistant up to 1100°C

FIRE RESISTANCE DURATION
Can maintain fire-resistant sealing performance for 1.5 hours under fire conditions

FLAMMABILITY RATING
A1 grade non-combustible

ENVIRONMENTAL CERTIFICATION
Complies with RoHS 2.0 environmental standards

EASE OF INSTALLATION
Designed to prefabricated specifications

EXPANSION CHARACTERISTICS

INITIAL EXPANSION TEMPERATURE
The expansion reaction begins at 100℃

EXPANSION SEALING TIME
The vent will be completely closed within approximately 5 minutes

ULTIMATE EXPANSION TIME
Reaches the expansion limit in about 20 minutes

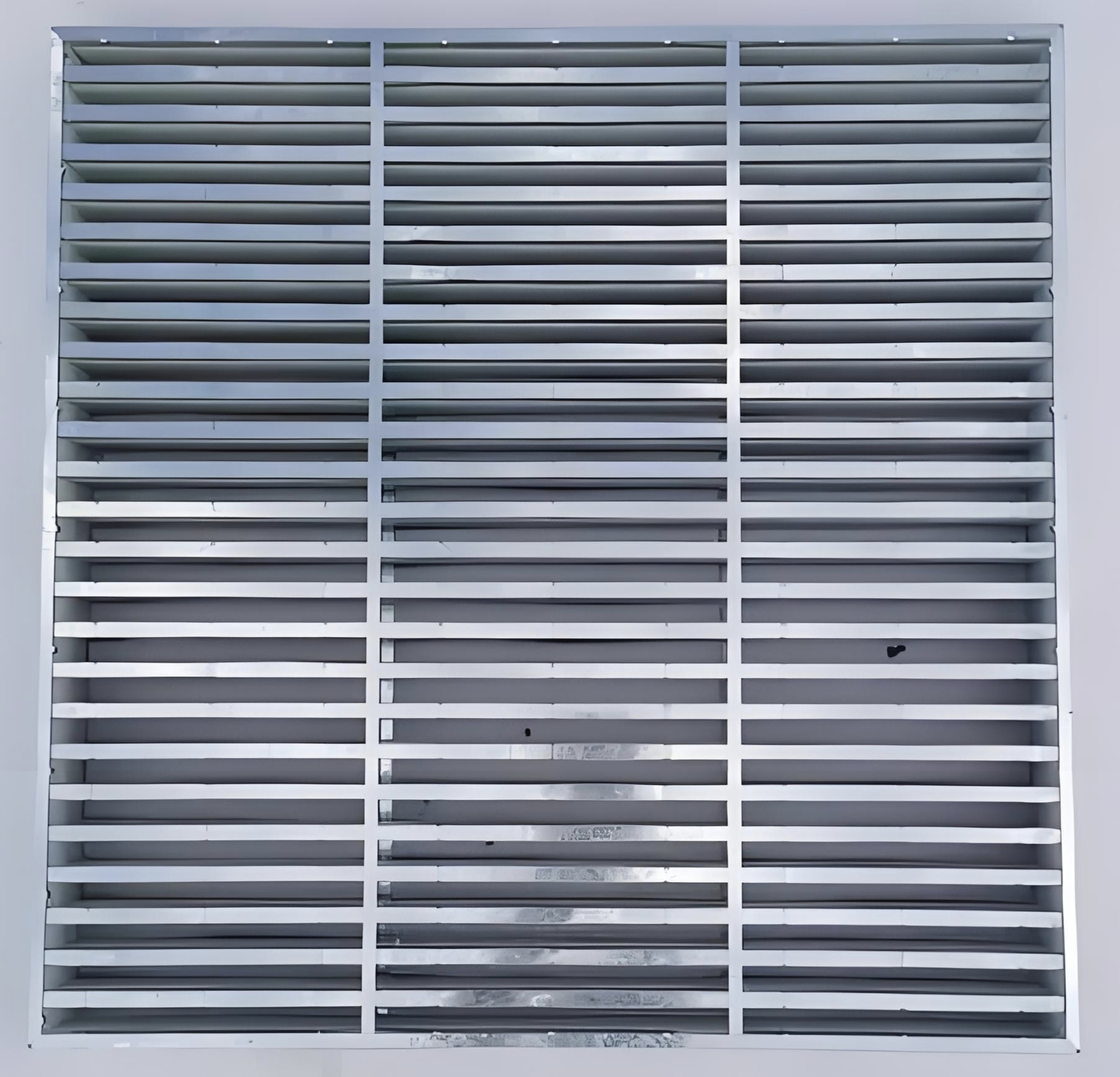

FIREPROOF GRILLE

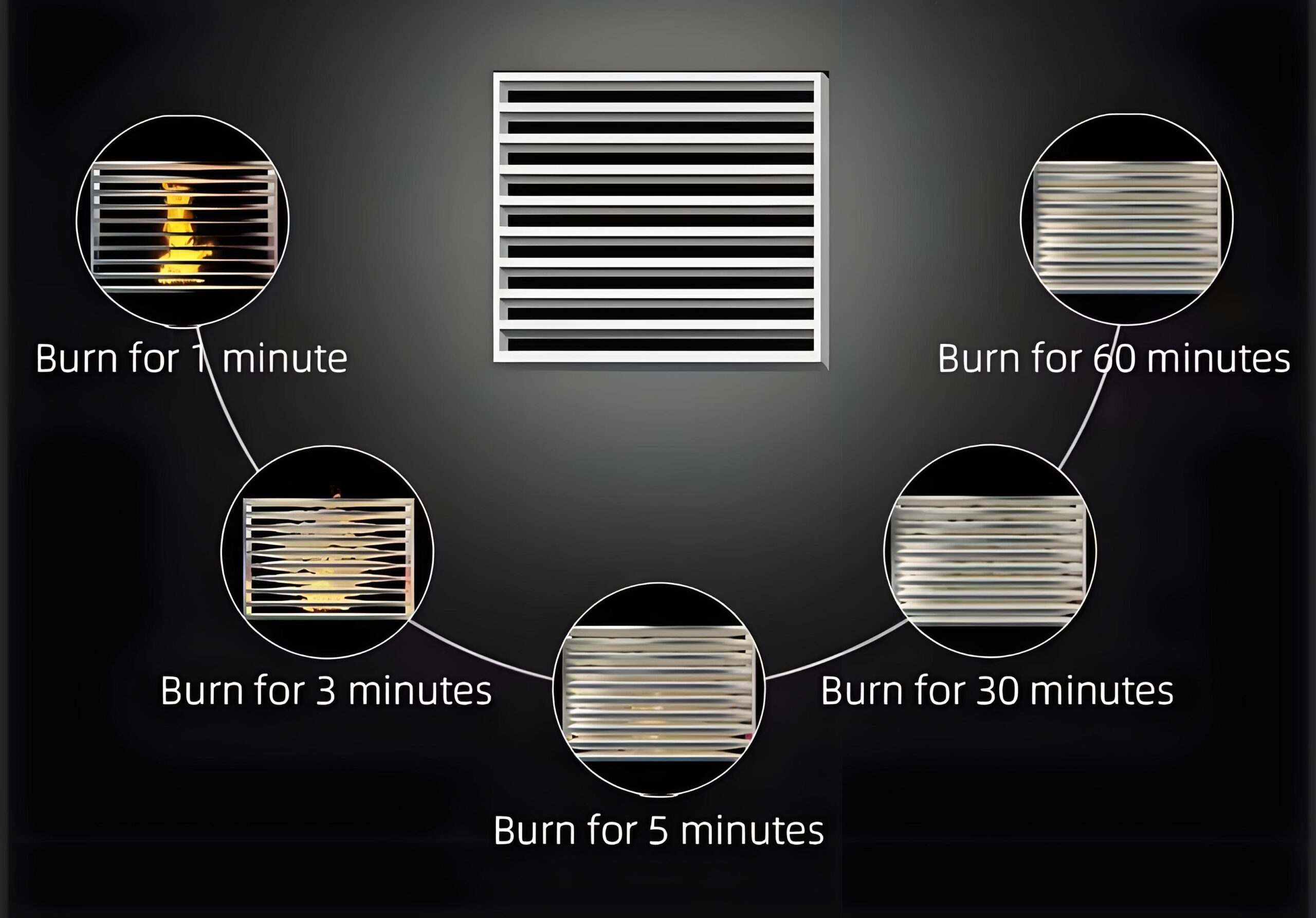

FIRE RESISTANCE TEST

Multiple fire resistance tests provide real data
The true experimental data is only for the safety of our customers

PRODUCT FEATURES

100℃
VENTIL V&VC
Reaction begins at 100℃
BYZHI
Grille filled with white thermoplastic BYZHI 100, 104
Thermoplastic plastic shell
5Minutes
The grille usually closes within 5 minutes, depending on the heat exposure.
±60℃
Stable structure at ±60℃, suitable only for indoor installation.
It is recommended to install in indoor walls, door frames, air ducts, and ceilings-areas that require ventilation conditions and closure in case of fire.

*Applicable Scenario Renderings

USAGE SUGGESTIONS

1. SCOPE OF APPLICATION FOR INSTALLATION
This fireproof grille is suitable for areas such as indoor walls, door frames, air ducts, and ceilings where both ventilation and fire protection are required; it ensures daily air circulation and can effectively close off in the event of a fire.
2. REGULAR INSPECTION REQUIREMENTS
The grille housing, installation and fixation status, and the integrity of the plastic casing need to be checked regularly; if any damage to the plastic casing or exposed expanded material is found, it should be replaced promptly to ensure fire protection performance meets the standards.
3. TRANSPORTATION PACKAGING SPECIFICATIONS
The product is first sealed in a plastic bag, then placed in a shockproof and moisture-proof hard carton; foam, bubble pads, and other cushioning materials are placed inside the carton to prevent damage during transportation; the packaging must have moisture-proof and dust-proof properties to prevent water and dust from affecting the product.
4. STORAGE REQUIREMENTS
Store in a cool, dry place indoors, avoid contact with chemicals, and prevent high temperatures and humidity from compromising fire-resistant properties; recommended storage temperature is 5℃-30℃, with humidity ≤65%; items should be stacked evenly to avoid excessive height that could cause damage to plastic casings or expanded materials, and the stacking height is recommended not to exceed 1.5 meters.
