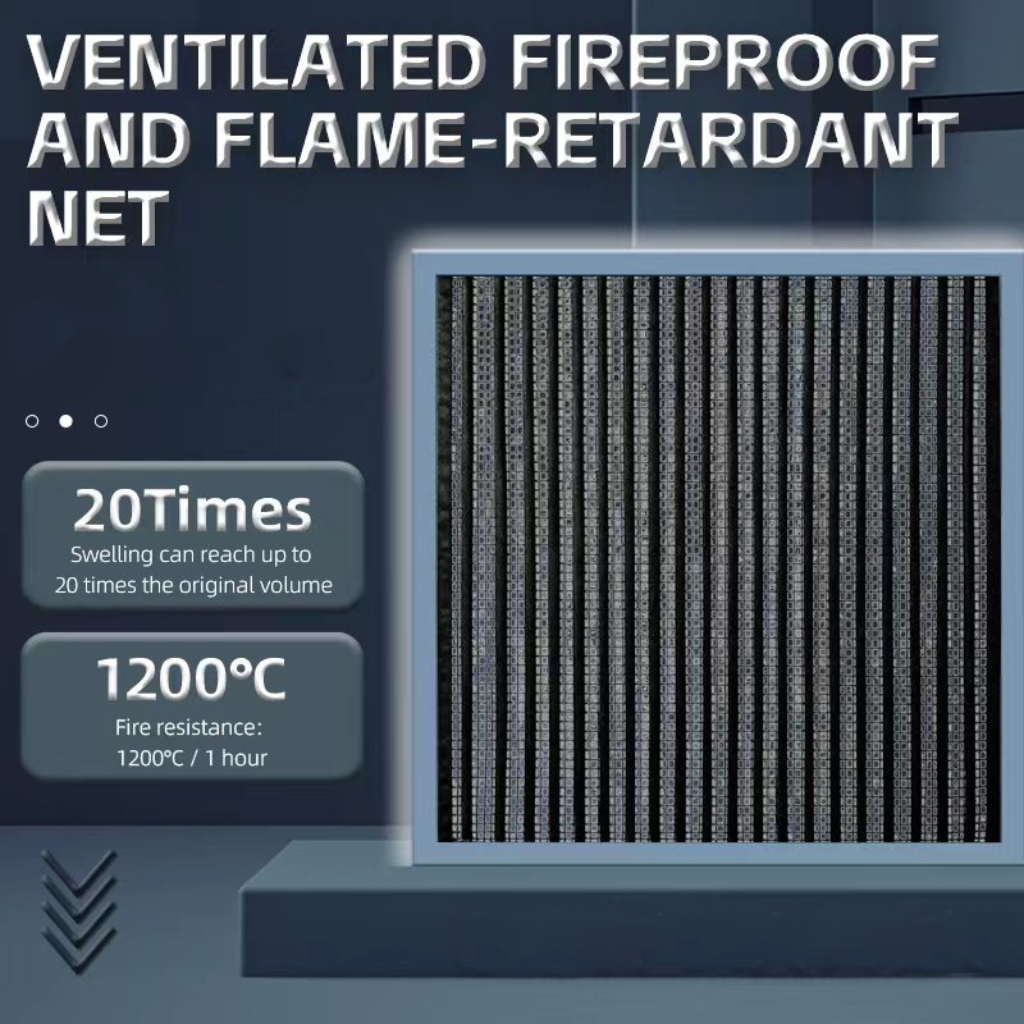

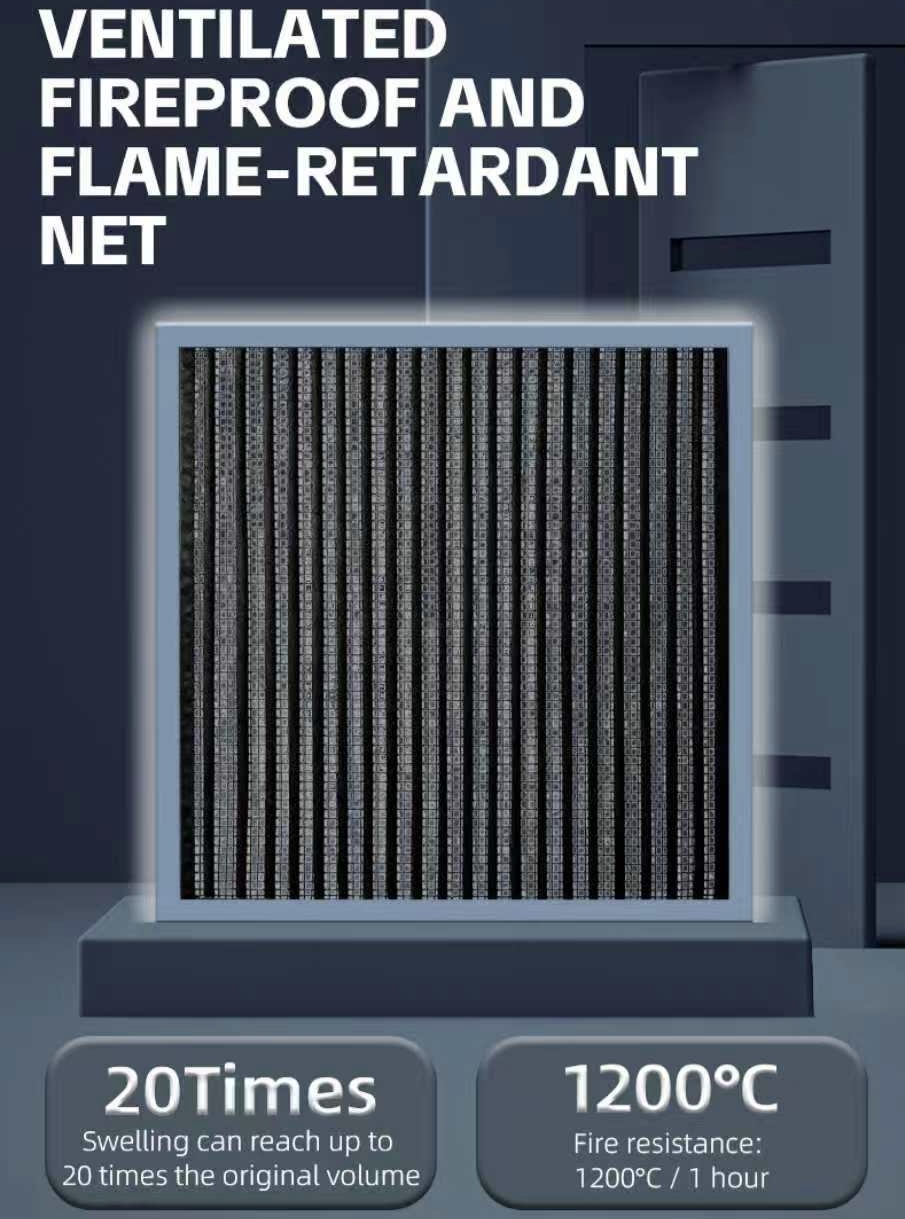

VENTILATED FIREPROOF AND
FLAME-RETARDANT NET
Fireproof and explosion-proof protection for people and equipment
The ventilated fire-retardant expansion net is a newly developed and manufactured material for fire prevention, fire extinguishing, and explosion protection in cables.
The entire material is composed of internationally certified fiber flame-retardant PVC foam and high-strength aramid or glass fiber with a strength greater than 25 grams/denier.
It can effectively prevent fires caused by cable insulation issues and external factors, as well as prevent the splattering that occurs during cable explosions.
When flame-retardant or non-flame-retardant cables are exposed to the heat of a fire, they tend to carbonize or burn.
However, ventilated fireproof intumescent meshes, made with PVC foaming materials attached to aramid fibers, react to heat by rapidly expanding.
As the material continues to expand, it can effectively prevent flames from damaging the cables themselves, and thereby effectively safeguarding the cables in the fire hazards.
The ventilated fireproof intumescent mesh is equipped with high-strength aramid or glass fibers.
In the event of a sudden cable explosion, its high explosive-resistant properties, which from the strength of effectively protecting, can prevent debris from being thrown, effectively protecting other nearby cables and equipment from damage and safeguarding construction personnel on site.
The ventilated fireproof expandable mesh is small in size and lightweight, adopting a wrapping installation method.
It is very portable and quick to install, whether in cable trenches or cable wells.
Even when laying new cables, it only requires unwrapping the new fireproof mesh, laying the new cables, and then re-wrapping it.
The material itself does not pose safety risks to workers generating heat during operation.

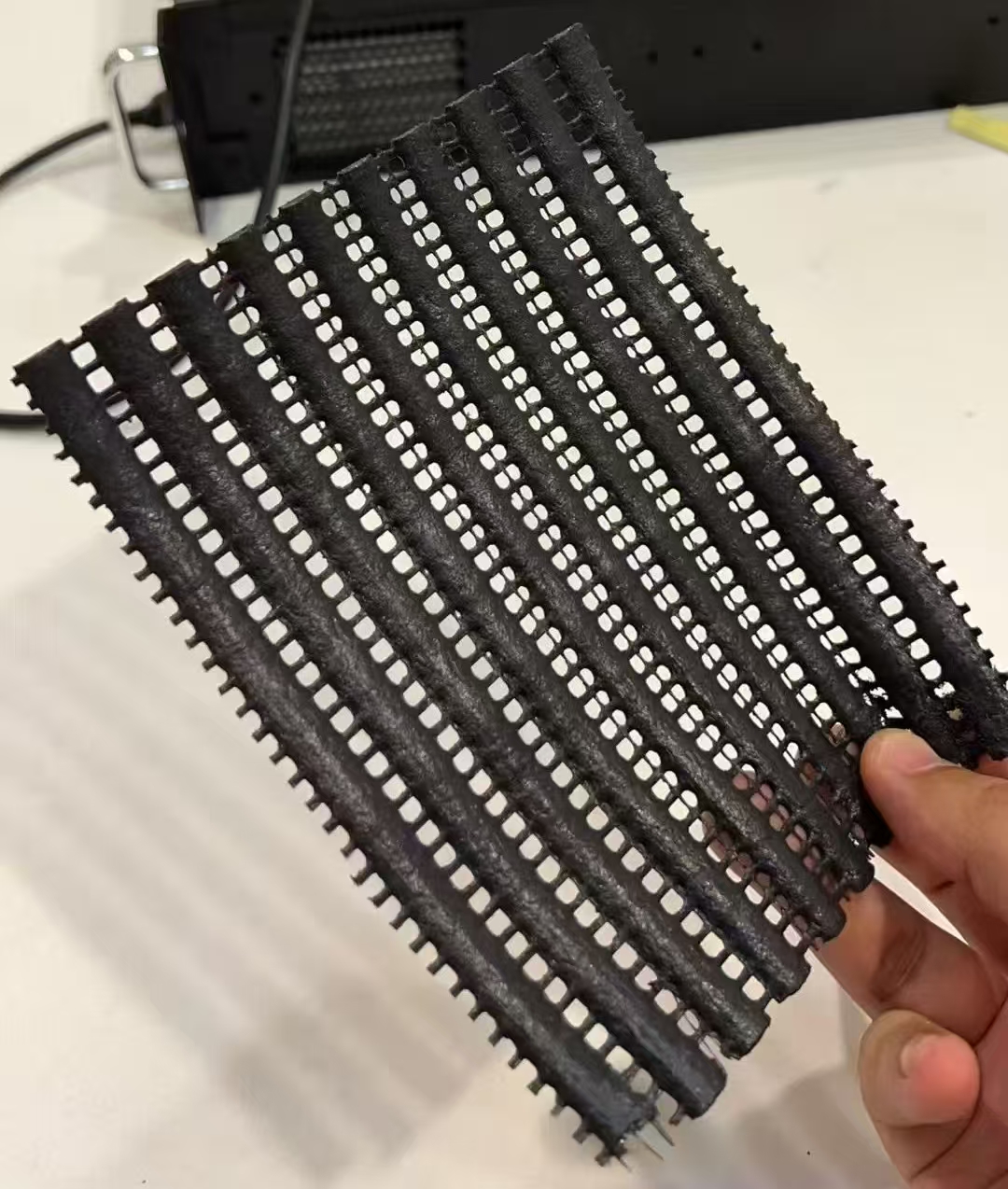

The ventilated fireproof intumescent material is designed with a mesh structure, which facilitates air circulation, allowing the heat generated by the cables during operation to dissipate into the environment in a timely manner, thereby reducing the cable temperature and extending the cable lifespan.
PRODUCT SPECIFICATIONS
MODEL
GRAYMATTER-1000
GRAYMATTER-5000
SPECIFICATIONS (mm)
970×1000
970×5000
EXPANSION TEMPERATURE (℃)
150° and above
150° and above
FIRE RESISTANCE
1200℃ / 1 hour
1200℃ / 1 hour
EXPANSION RATIO
20
20
PRODUCT FEATURES
MATERIAL STRUCTURE
Aramid or glass fiber woven structures coated with foaming PVC powder
COMBUSTION PERFORMANCE
Horizontal burning rating: HB (highest level)
Vertical burnine ratine:V-0 (hiohest level)
FOAMING TEMPERATURE AND RATIO
Initial expansion temperature:
150°c,expands 20 times
CABLE ENERGIZATION INTEGRITY
PERPORMANCE IN A FIRE
Non fire-resistant cables more
than 90 minutes(qualified)
fire-resistant cables more
than 30 minutes (improved)
WATER RESISTANCE
Does not contain moisture
or absorb water, can be
immersed in water for life,
and the material properties
will not change.
TOXICITY
Non-toxic when foaming
(reacting with fire)
and harmless to humans
EXPLOSION-PROOF RATING
Made of high.quality aramid
or glass fiber,with a streneth
greater than 25 grams/denier
which is 5-6 times stronger than
high-quality steel
CORROSION RESISTANCE
No reaction to strong acids and strong bases. The material does not undergo any chemical reaction in strong acid and strong base environments from pH 1 to pH 14
SERVICE LIFE AND REUSABILITY
The indoor service life is permanent, The outdoor
serice life under direct sunlight is 5 years, and part of it can be reused after foaming.
INSULATION
Has good insulation resistance. When an external voltage of 10KV is applied, the material does not decompose and its physical properties remain unchanged
(Note: The product cannot be used as an insulating material)

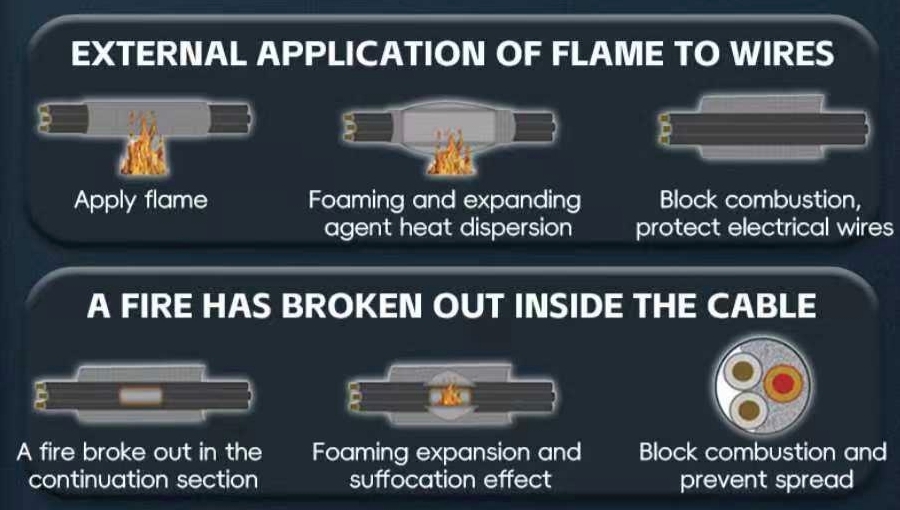

PROTECTION PRINCIPLE
Through heat or flames from a fire, fire-resistant and flame-retardant foamed material expands from several to dozens of times of its original volume, becoming non-combustible and isolating heat and flames.

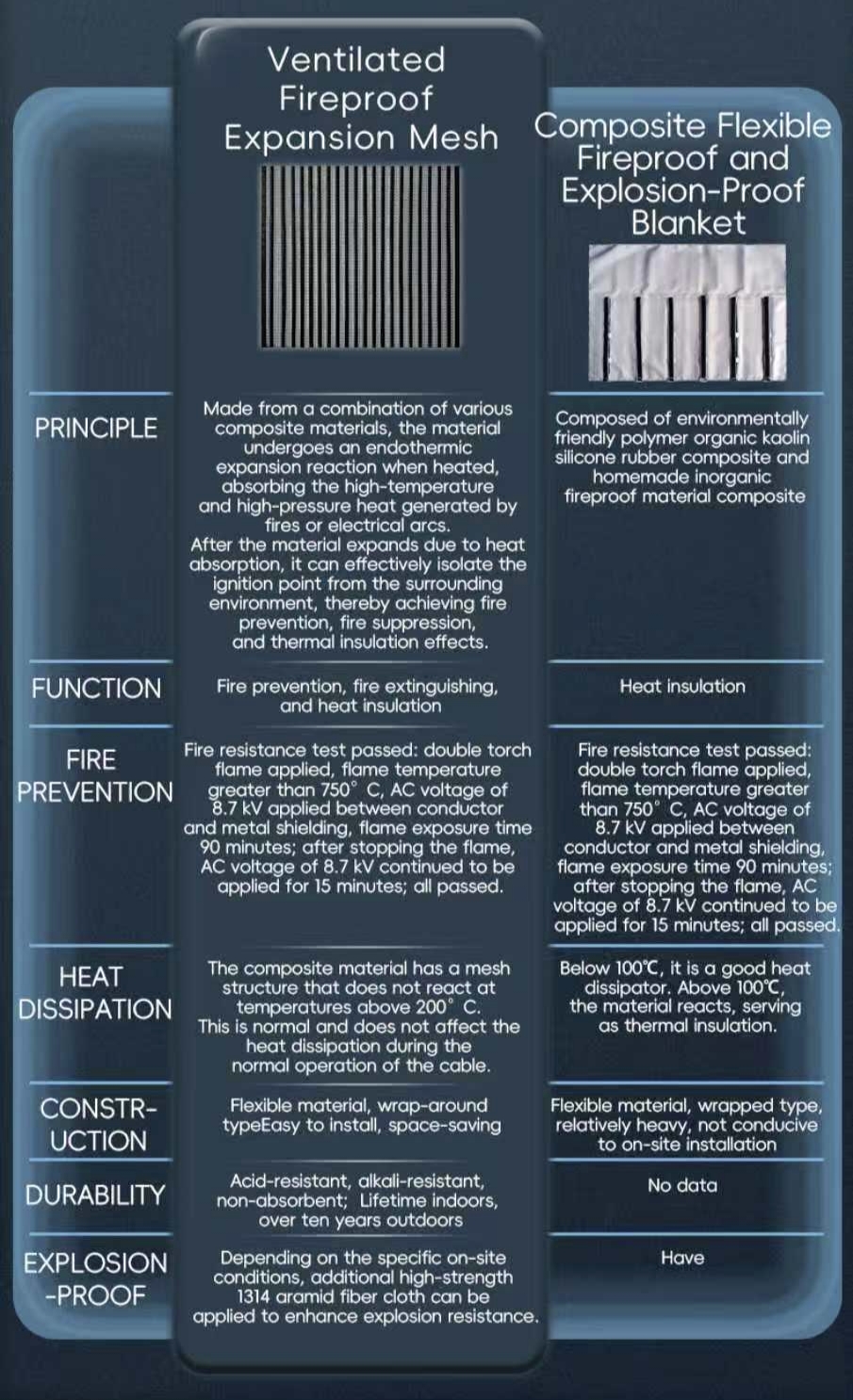

PRODUCT COMPARISON
Don’t be afraid of comparisons,
the key is choosing the right product.
Product Features
Manufacturer direct sale
Good water resistance
High-quality material
Explosion-proof grade
Pressure-resistant and corrosion-resistant
Durable

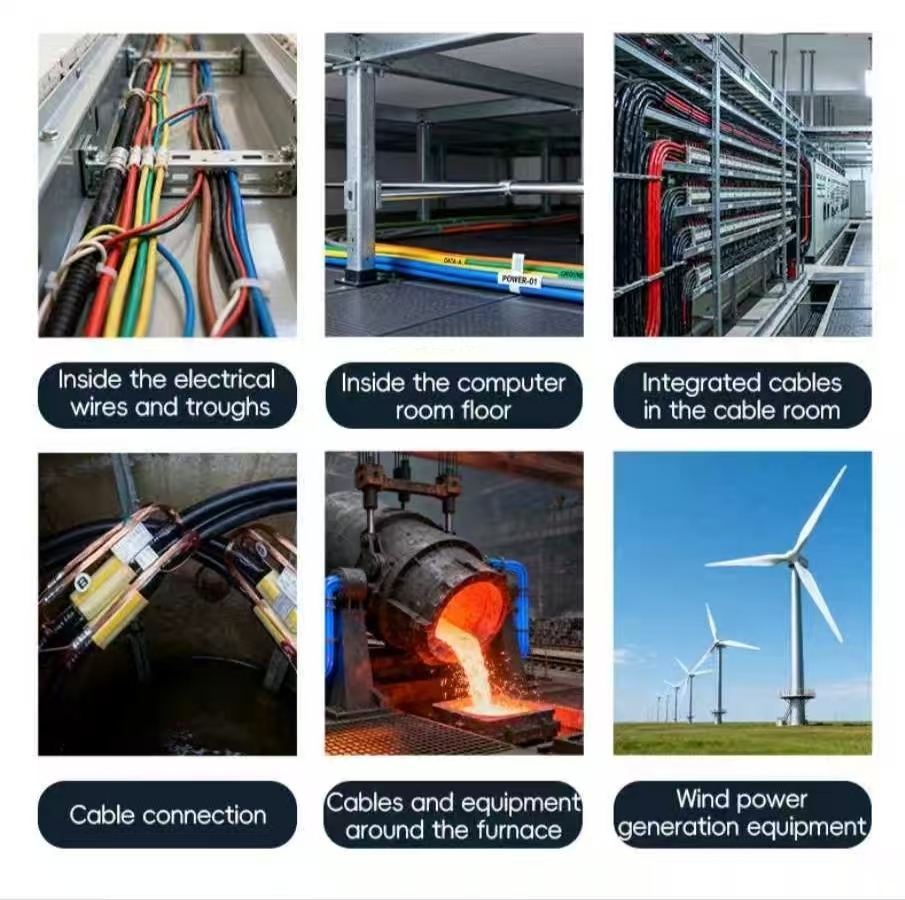

SCOPE OF APPLICATION
Wide applicability, includes various types of power and environment
